Your position：Product Categories > Drill Rig Spare Parts > Titanium Copper Clad Round Bar Ti- Cu Clad Flat Bar Anode
Non-Ferrous Metal Composite Materials
- Product Numbers：20156219434
INTRODUCTION:
Product Description

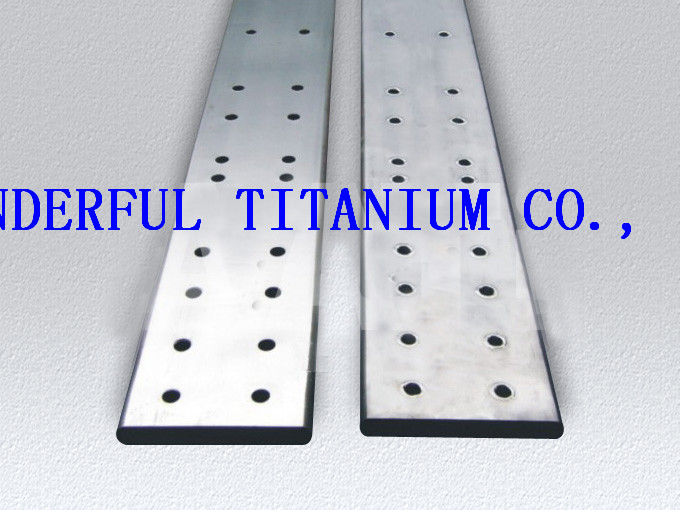

Titanium copper cladding bar with best price
Ti Clad Copper has excellent conductivity and is fully ductile for shaping and forming. Ti Clad Copper also has great weldability for connecting, capping and joining.
|
Compound material product size table |
||||||||||||
| Implement national standard: GB/T12769-2003 ASTM | ||||||||||||
| Technology:rolled +stretch | ||||||||||||
| Definition | section shape and size(mm) | add material | add material | Substrate material | ||||||||
| layer thickness |
|
|
||||||||||
| square | length(20-40) r(3-8) | 1.0-2.0 | Ti,Zr,Ni,Stainless steel | T2,TU2,AL,etc | ||||||||
| rectangle | length(30-100)width(10-30)r(3-5) | 1.0-2.0 | ||||||||||
| drum | Dia(25,27,29,32,34)*14 | 1.0-2.0 | ||||||||||
| round | Dia(8-50) | 1.0-2.0 | ||||||||||
| wire material | Dia(2.0-8.0) | 1.0-2.0 | ||||||||||
| Application: | Electroplating, electrolysis, wet metallurgy,, petroleum chemical industry, |
|
||||||||||
| Energy engineering, ocean engineering,Surface treatment, electrode manufacturing |
|
|||||||||||
| Advantage | 1.Double metal composite bars production new technology patent certificate | |||||||||||
|
2.Corrosion resistance, strong conductive |
||||||||||||
|
Types |
Material |
Specification |
Standards |
|
Ti/steel |
Gr1, Gr2, Gr7, Gr12/ 16Mng, 20R, 20g,Q235 |
1-10/5-120 x≤2000x≤8000 |
GB8547-87 |
|
Ti/stainless steel |
Gr1, Gr2, Gr7, Gr12/ OCr13, 18-8 |
1-6/5-120 x≤2000x≤8000 |
GB8546-87 |
|
Ti/Al |
Gr1, Gr2, Gr7, Gr12/ L, LY, LF |
1-10/50-120 x≤2000x≤8000 |
GB8547-87 |
|
Ti/Cu |
Gr1, Gr2, Gr7, Gr12/ T1, T2, T3, T4 |
1-10/50-120 x≤2000x≤8000 |
GB8547-87 |
|
Ti/steel/stainless steel |
Gr1,Gr2/Q235/ OCr10Ni2Mo2Ti |
0.1-10/1-100/0.1-10 |
GB8547-87 |
|
Stainless steel/steel |
OCr13, OCr13A1/ Q235, 20R, 20g, 16MnR |
1-10/4-120 x≤2500x≤10000 |
GB/T8165-97 |
|
Ni/steel |
N2, N4, N6/ Q235,20R, 20g, 16MnR |
0.3-25/0.2-100≤2000x≤10000 |
JB/T4748-2002 |
Why Choose Us
Premium Quality
All the products are mill certified and 100% traceable from mill processing through melt source to maintain quality control requirements. Third Party Inspectation.
Competitive Price
Working from titanium sponge and finishing the raw material melting, milling, drawing, cutting, packaging in house for most products, this makes our prices much more competitive as the middleman is cut out. And our cooperated forwarder and courier charge us reasonable costs for goods delivery.
Superior Serviceand After-Service
Quick response and on-time delivery. We also offer value-added processing such as welding, drilling, surface treatment and customized cutting.
