API BPE Non-magnetic Drill collars

BPE Non-magnetic Drill collars are made from Non-magnetic steel bars with low-strength by combining a proprietary chemical analysis and a rotary hammer forging process with low magnetic permeability excellent machine ability; it will not interfere with the specialized directional equipment and will enhance the performance of the drilling operation.

Non-mag drill collars function as housing for the MWD tools, while at the same time provide the weight for drill string. Non-mag drill collars are suitable for all types of drilling including straight and directional applications.

Each drill collar is fully inspected by internal inspection dept. All data obtained are recorded on the inspection certificate furnished with each drill collar. API monogram, serial number, OD, ID, type and size of connections are stamped on recessed mill flats.

We can provide three type of non magnetic drill collar according to the customers’ order; include Slick, Spiral, and Flex Non-Mag Drill Collar.

Slick Non-Mag Drill Collar

BPE Slick Non-Mag Drill Collar provides the required weight on bit, and will not interfere with the directional drilling ability.

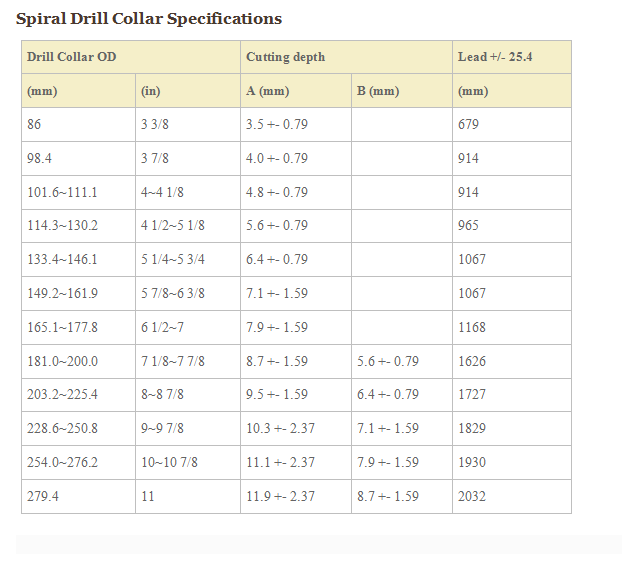

Spiral Non-Mag Drill Collar

BPE Spiral Non-Mag Drill Collar is designed to allow greater flow area for drilling fluids, while providing the benefits of non-mag steel for complex drilling programs.

Flex Non-Mag Drill Collar

BPE Flex Non-Mag Drill Collar is thinner and more flexible than standard drill collar. Their ability to make short radius turns, bend for high build angles, and pass through severe doglegs makes them ideal for use in directional and horizontal applications. Manufactured with non-mag steel, this drill collar is well suited for housing MWD equipment.

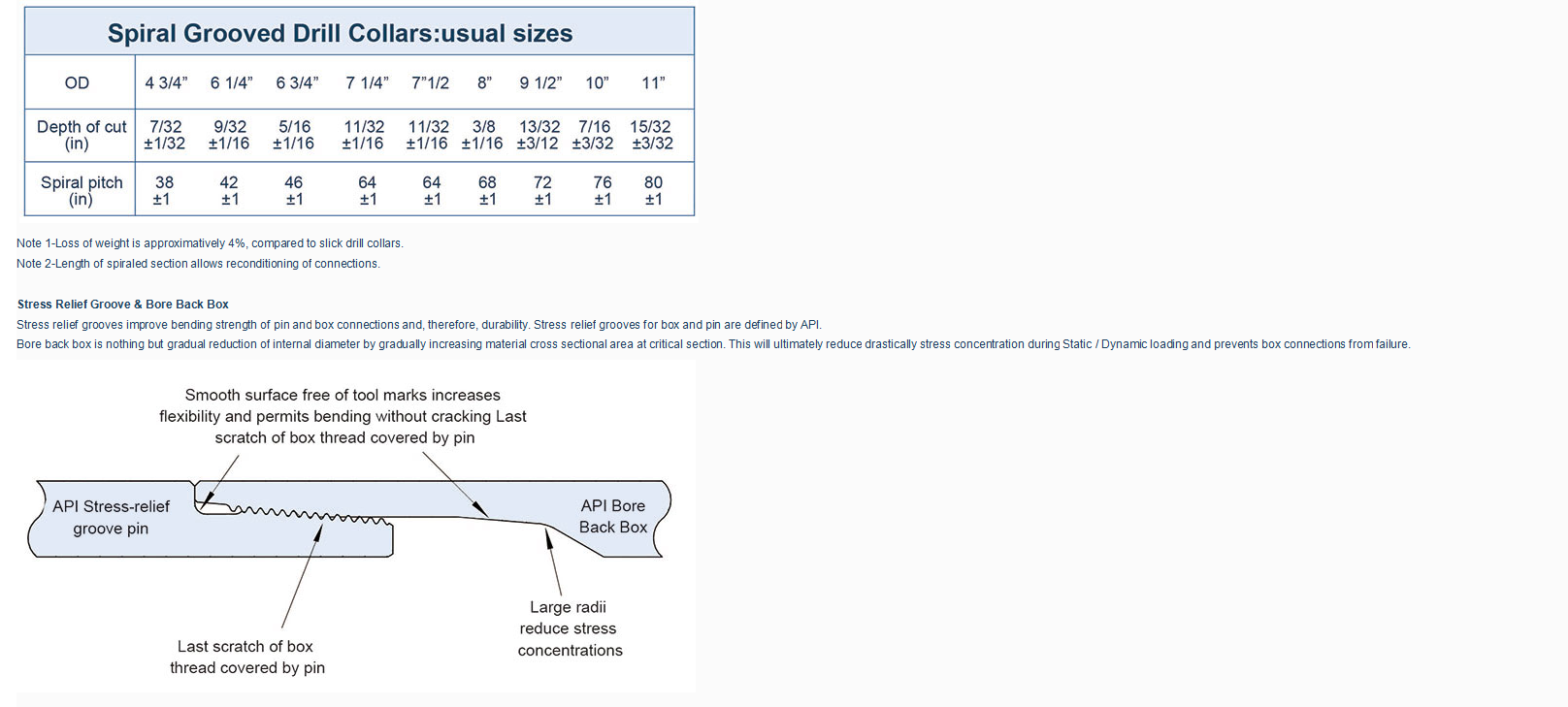

Spiral Grooving

Spiral Grooving In order to avoid differential pressure sticking in the hole.
