High quality BPE Perforated Pipe
BPE perforated casing is usually used for creating direct link between the wellbores and the producing formation through cutting holes in the casing and the cement sheath that surrounds it. The dimension and distribution of the perforated holes affect the well productivity directly.
The performance of BPE perforated casing:
1.Our perforated pipe use casing and tubing of API standard, with High overall strength, not so easy to deformation.
2. The hole is uniform and smooth, without burrs.
3. The whole pipe will be anti-corrosion treated and form a protective covering. It can effectively improve the resistance to corrosion and abrasive resistance of the pipe, prolong the working life underground.
4. It’s easy to operate and convenient to use.
5. The hole size and number can be custom designed.
The hole pattern of BPE perforated casing: Non staggered, staggered, spiral staggered

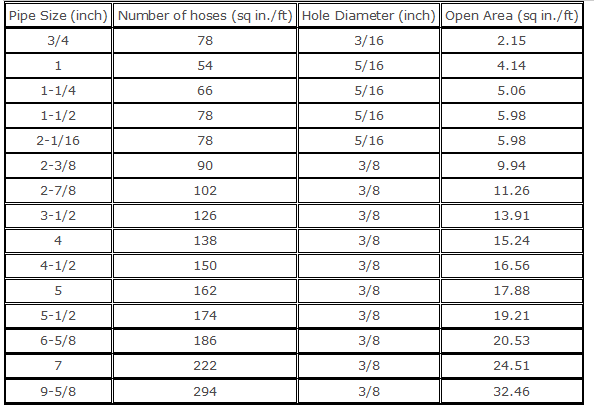

BPE perforated casing parameters
Pipe Size (inch) |
Number of hoses (sq in./ft) |
Hole Diameter (inch) |
Open Area (sq in./ft) |
|
|
|
|
Custom products are available on special orders.
